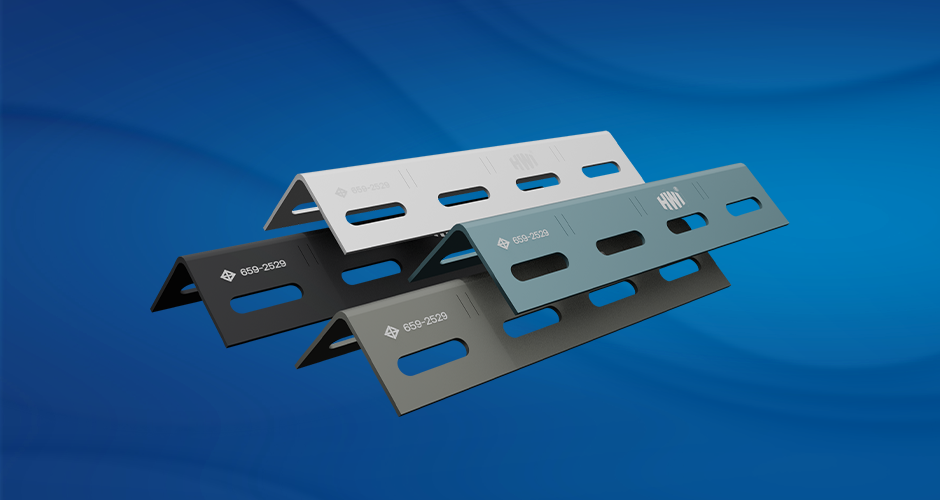

Color Coated Slotted Angles
Color Coated Slotted Angles
HWI Color Coated Slotted Angles brand
It was recognized as the first company certified Thai Industrial Standard for this product.
It was recognized as the first company certified Thai Industrial Standard for this product.
Advantages of slotted angles for framing system.
- Rust resistant.
- Economical, easy assembly and quick set-up (Just measure, cut and bolt together).
- No drilling, welding or special tools necessary
- 100 % reusable. (old outmoded structures can be unbolted and reassembled into new ones).
- Extreme load is up to 300 Kgs./Shelf. Bolts and nuts for assembly even assure a strong structure for years of use. (More details on loading at table of beam and column loadings)
| # | Product | Thickness (mm.) | Length (m.) | Net Weight /Pc. (Estimate) |
|---|---|---|---|---|
| 1 | 2-1/4" x 1-1/2" Grey | 1.8 | 3 | 3.2 Kgs. |
| 2 | 2-1/4" x 1-1/2" Grey | 2.0 | 3 | 3.6 Kgs. |
| 3 | 1-1/2" x 1-1/2" Grey | 1.8 | 3 | 2.6 Kgs. |
| 4 | 1-1/2" x 1-1/2" Grey | 2.0 | 3 | 2.9 Kgs. |
Note: Following Length available upon request: 1.8 m., 2.0 m., 2.2 m., 2.4 m., 2.6 m., 2.8 m.
Accessories
FREE OF CHARGE per bundle of Slotted Angle (10 Pcs.)
| Accessories | Description | Free Of Charge |
|---|---|---|
 |
Round head bolts and nuts (Zinc Coated) Specification 2-1/4” x 1-1/2”.To assemble with slotted angle size 1-1/2” x 1-1/2” |
60 pairs/Pack |
 |
Hex head bolts and nuts (Zinc Coated) Specification 5/16” x 1/2”.To assemble with slotted angle size 2-1/4” x 1-1/2” |
60 pairs/Pack |
 |
Corner Plates added rigidity and strength (Zinc Coated). To assemble with slotted angle size 1-1/2” x 1-1/2” |
20 pieces/Pack |
DOWNLOAD BROCHURE
Color Coated Slotted Angles

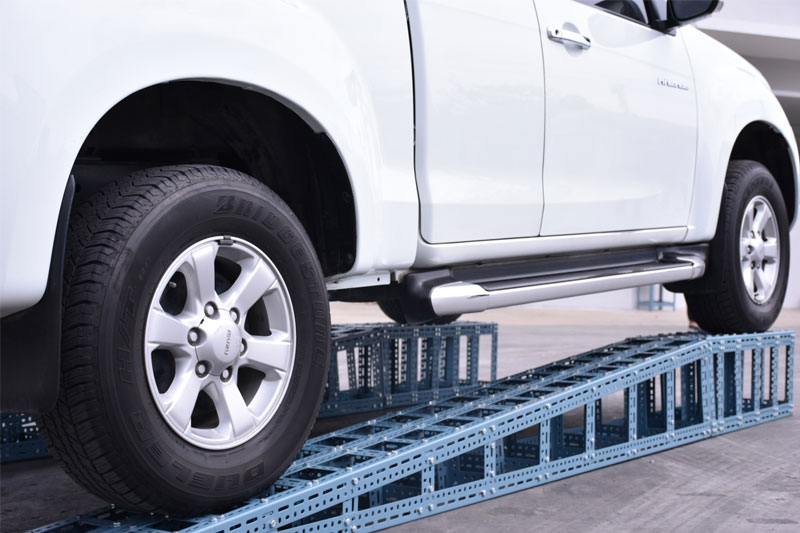

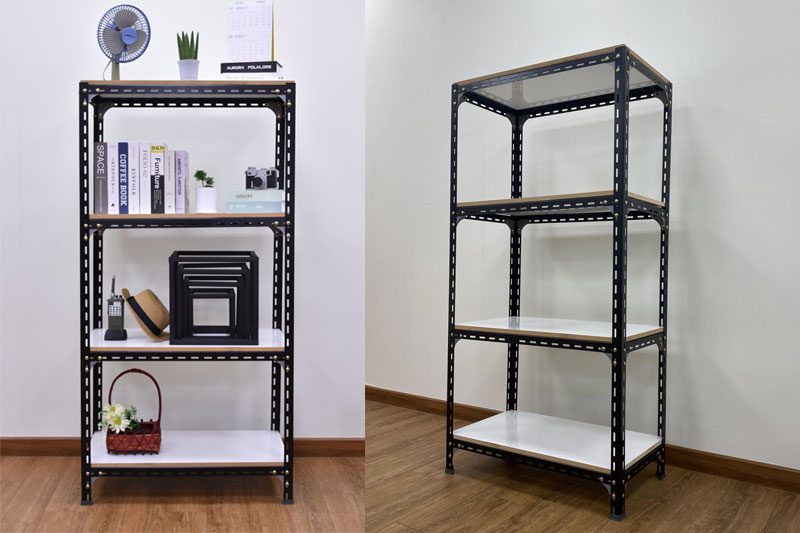

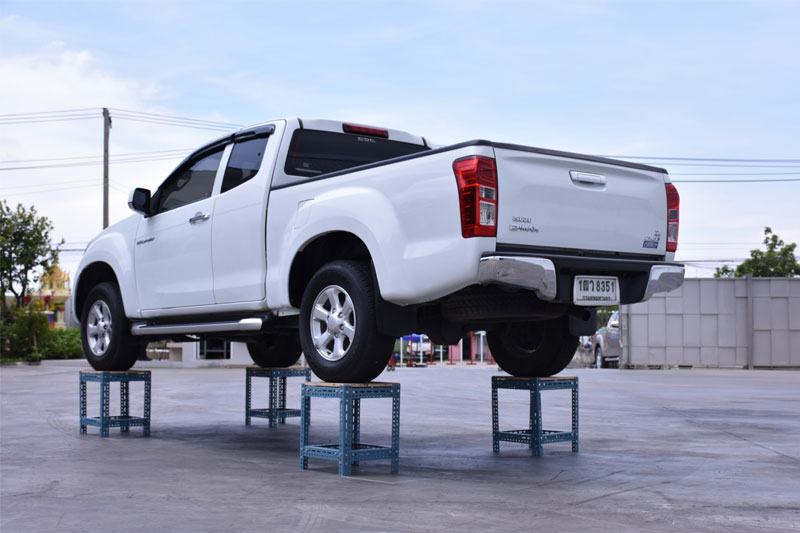

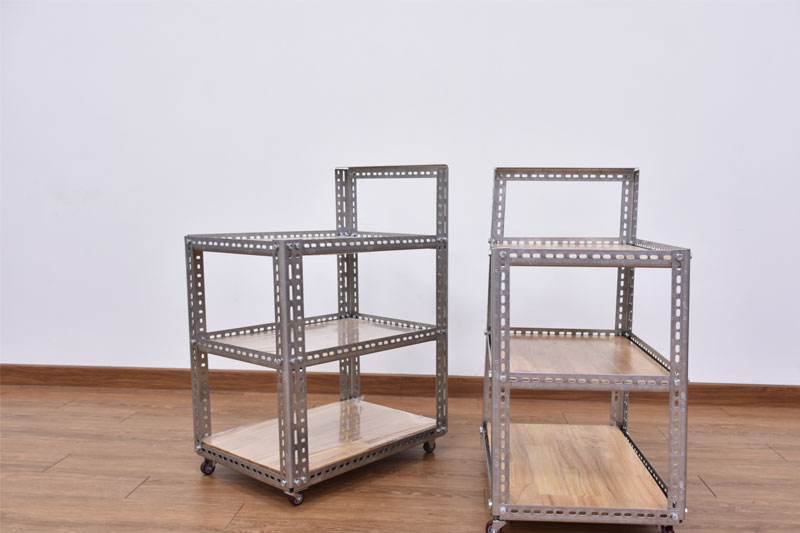

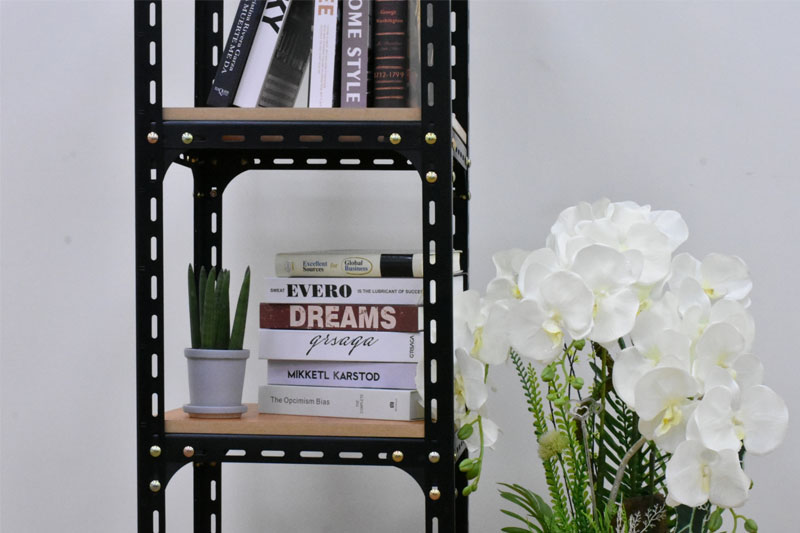

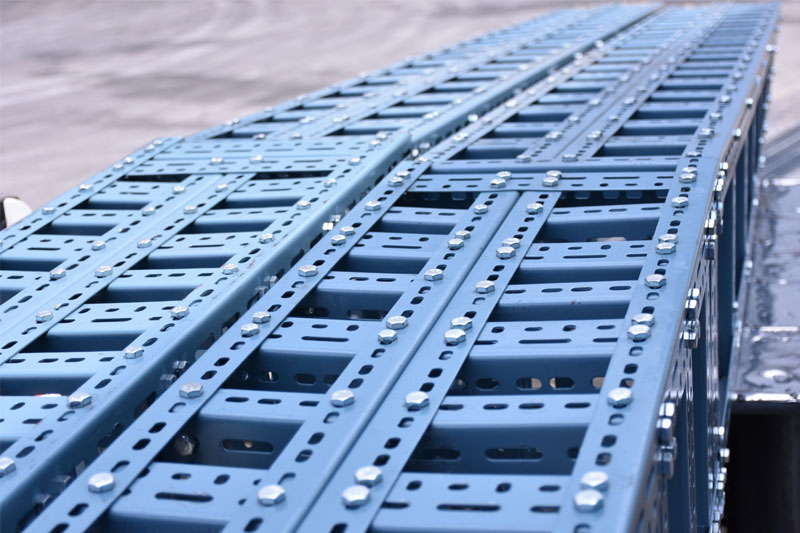

APPLICATIONS
APPLICATIONS
